PITT Cooking America

Cusin - Top

Name: Cusin - Top
Brand: PITT Cooking America
SKU: 8719743675919
Price: 5299.0 USD
Availability: InStock

Finish Brass (Professional) Black (Full Black)

Gas Type Natural Gas Propane

Product variants

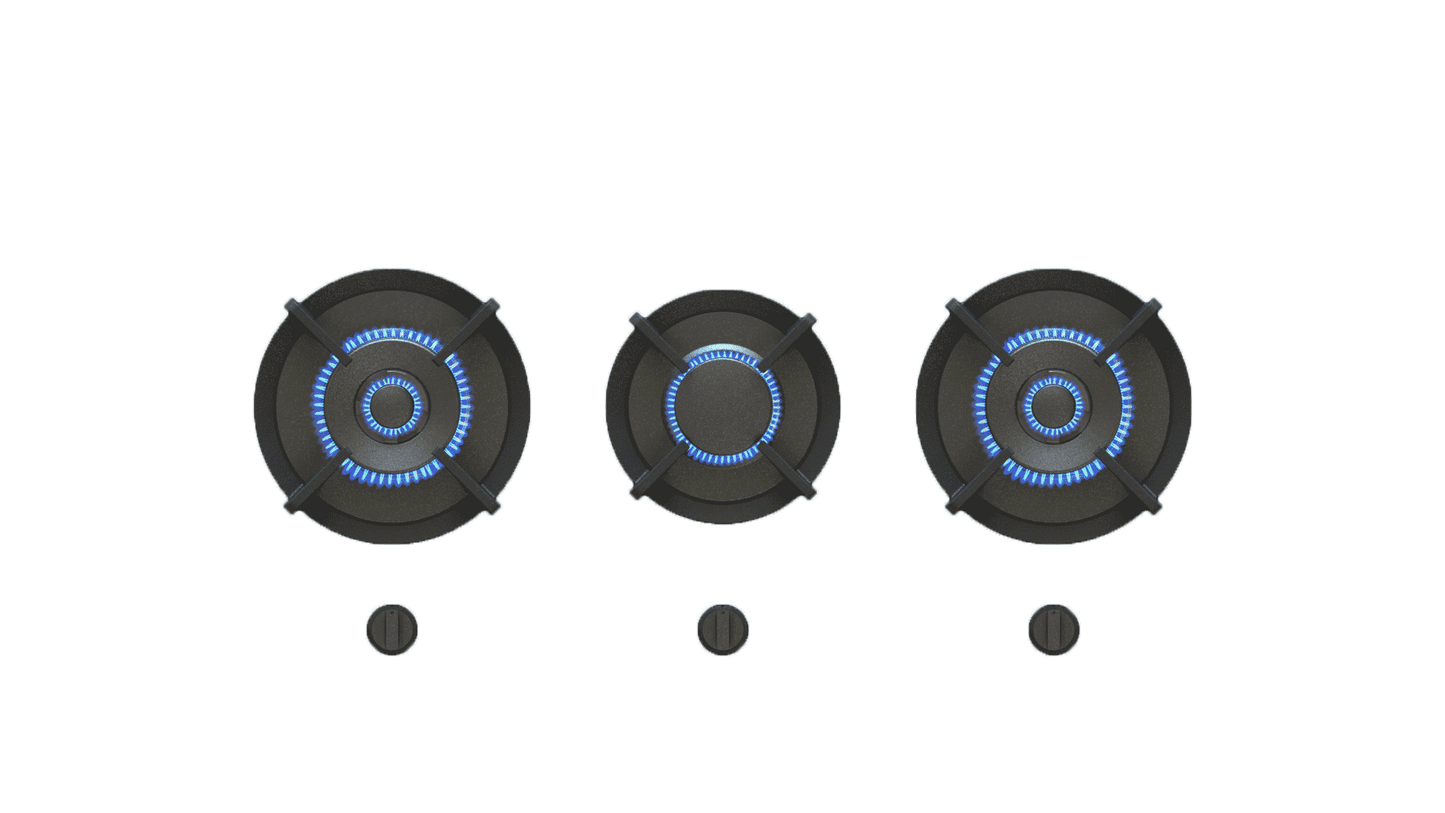

Model with 3 gas hobs. Named after a volcano in Colombia.

Type of burners	1x 0,3-3 kW • 1x 1024 - 10236 Btu/h • 1x 1,1 - 10,8 MJ 2x 0,2-5 kW • 2x 682 - 17061 Btu/h • 2x 0,7 - 18 MJ
Editions	Original (aluminium) Professional (brass) Black (full black)
The controls	Top Side Front Side
Module dimensions (LxBxH)	403 x 853 x 89 mm 15^7/8" x 33^9/16" x 3^1/2"
Automatic spark ignition	✓
Flame protection	✓
Weight	20,5 kg
Wok ring	✓

Design instructions (cabinet/countertop)

Minimum worktop depth	600 mm / 23 ^5/8"
Minimum cabinet width	900 mm / 35^7/16 "
Worktop thickness (original material)	4-35 mm / ^5/32-1^3/8 "
Minimum C-measurement	50 mm / 1^31/32 "
Support bar needed?	✓

Gas & Electricity

Type of gas	Natural gas or LPG (contact us for adaptor)
Gas connection	½" external threads
Position gas connection	Top corner, right
Voltage	110v
Cord length	5ft

Installation Instructions

Before installing any PITT Cooking unit, please read the installations instructions fully.
