PITT Cooking America
Enep - Induction
Enep - Induction
or Contact Us
Couldn't load pickup availability
Click here to download the installation instructions
| Brief specifications | |
| Type of zones | 4x zone small 1x zone large |
| Editions | Black (full black) |

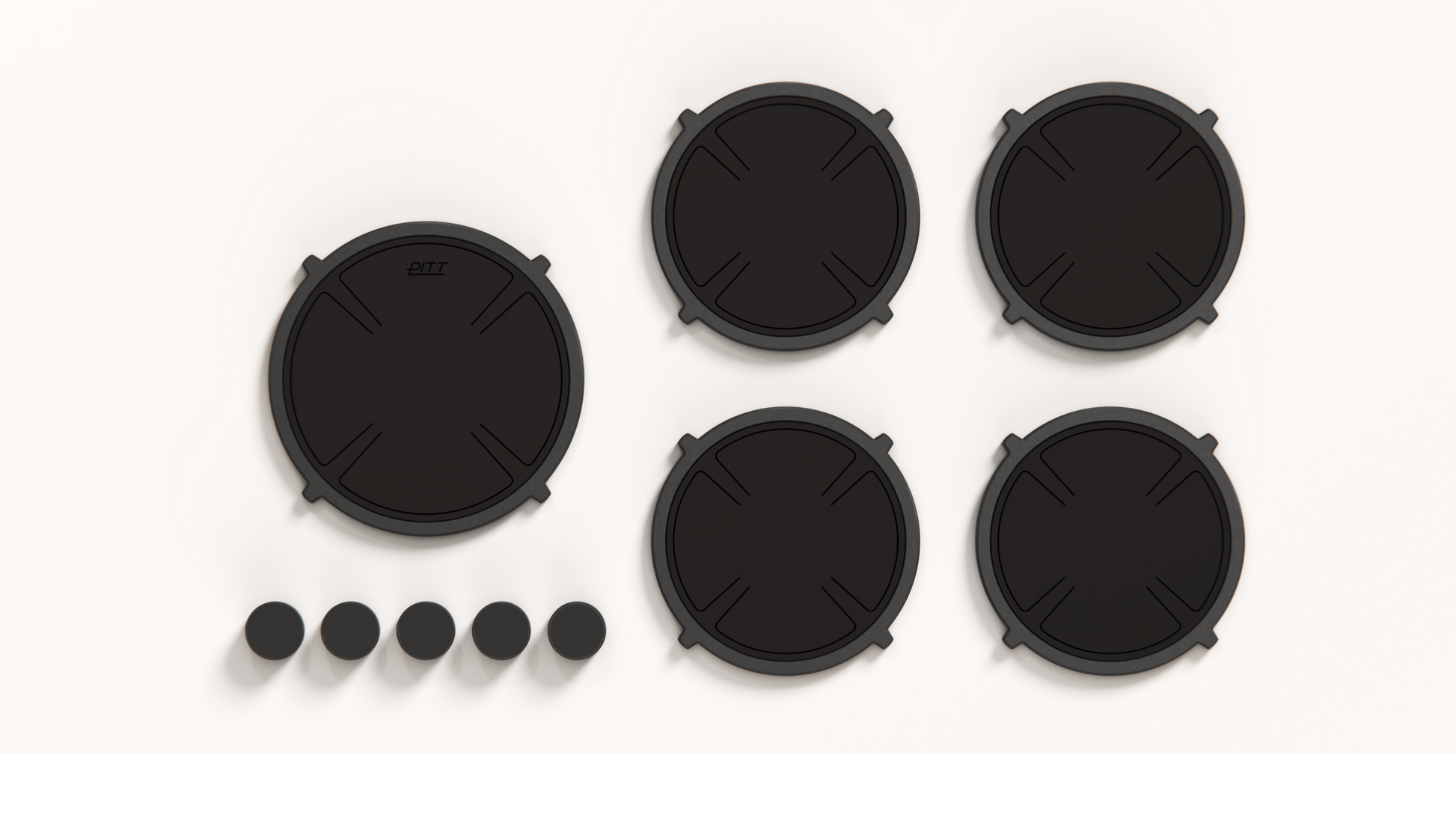

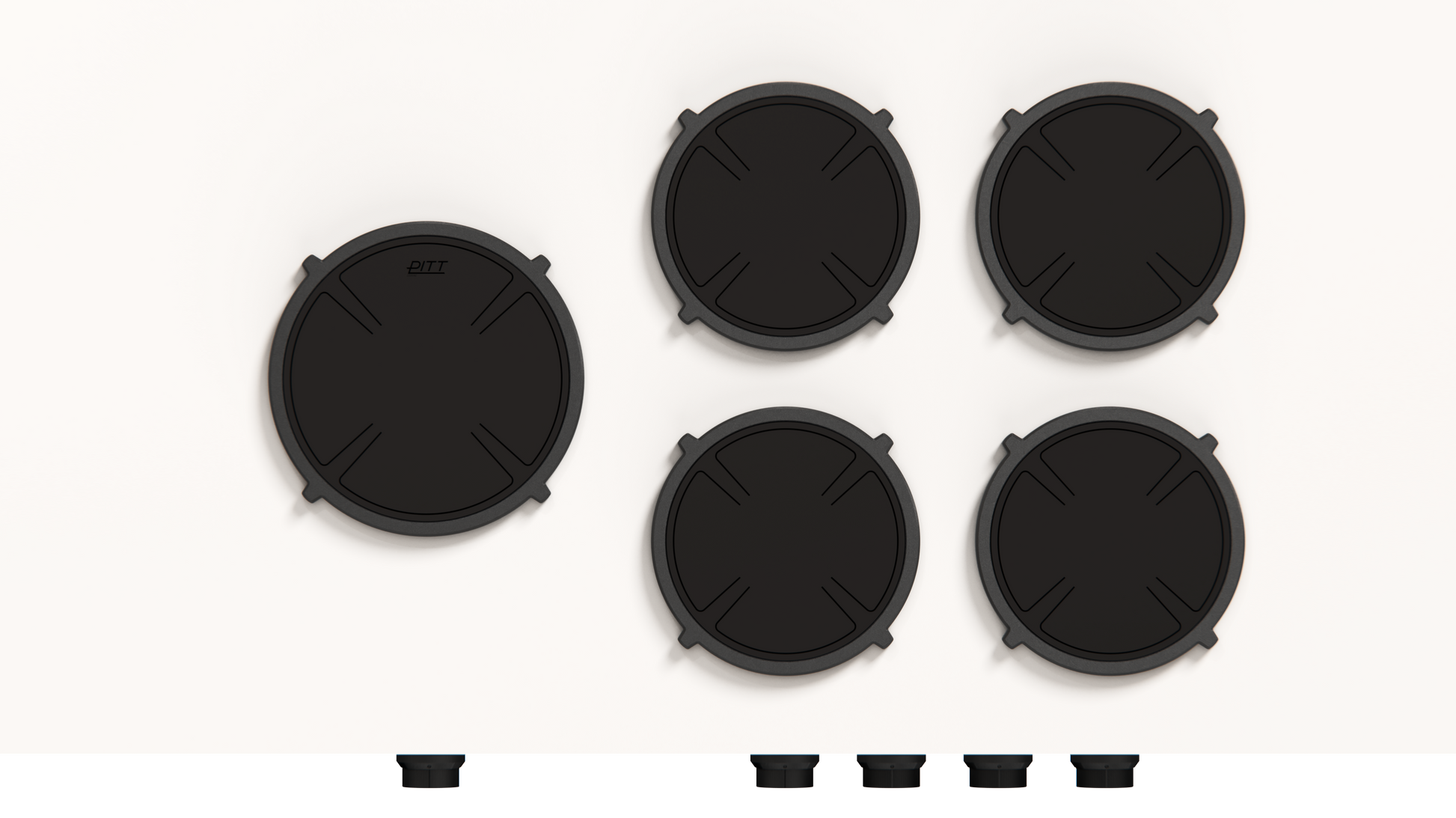

| Position of the knobs | Top Side Front Side |
| Dimensions of the module (LxWxH) | 17.60 × 33.82 × 3.54 inches |
| Automatic pan detection | ✓ |
| Power levels | 0 - 10 + Boost |
| Nominal voltage | 208 VAC / 240 VAC |
| Maximum power | 9,256W (@208VAC) /10,680W (@240VAC) |
| Weight | 18 kg |
| Detailed specifications | |
| Design instructions (cabinet/countertop) | |
| Minimum worktop depth | Top Side: 23.62 inches Front Side: 25.59 inches |
| Minimum cabinet width | 47.24 inches |
| Worktop thickness (original material) | 0.16 – 1.38 inches |
| Support bar needed? | ✓ |
| Gas & Electricity | |
| Type of cooking system | Induction |
| Position of electrical connection | Top-right corner |
| Maximum cable length | 59.06 inches |
| Recommended specifications for electrical wires | 2.5 mm2 |
Installation Instructions
Before installing any PITT Cooking unit, please read the installations instructions fully.
